Machine Rotor Construction
            Drive Magnets Steel Backing

Back To Home Page
Drive Magnets Polarity
Machine Construction Home Page
Rotor Construction Thumbnails

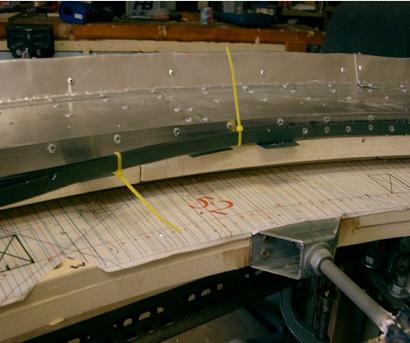

Left.  Aluminum stiffening panel bottom fixing is accomplished when the steel strips are riveted on. The rivets are countersunk head type, and are about 25mm apart. The strips are staggered so the joins will overlap.
Right. The strips are easy to control when bundled together with cheap cable ties.
Drive Magnets Polarity
