Machine Rotor Construction
Installing Rotor Radial Levitation  Magnets

Back To Home Page
More Rotor Radial Levitation  Magnets
Machine Construction Home Page
Rotor Construction Thumbnails

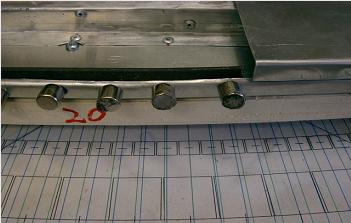

 Top left             Top panels ready to be fitted

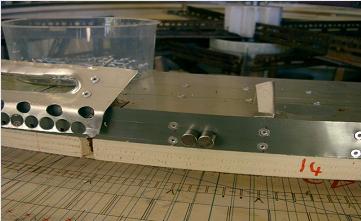

 Top right           Top panels fitted. Steel band and alum magnet locator installed.

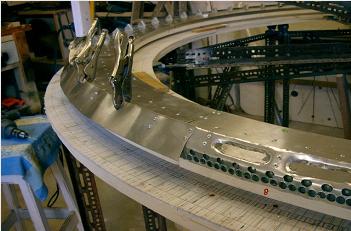

 Bottom left       Aluminum magnet locator being hand formed.

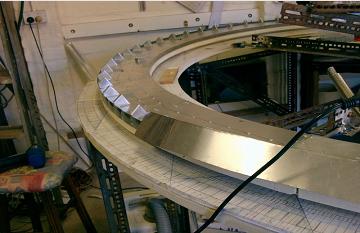

 Bottom right     Small hand formed brackets.
The small brackets position the magnet locator panels, and may be used later for mounting Halbach Arrays for lateral acceleration experiments.  They should also add rigidity to the rotor when the corresponding back panel is fitted. The elongated holes may provide a means of limited spin testing using compressed air.
