Machine Frame or Stator
Assembling Radial Magnet Holder
Back To The Home Page
Machine Construction Home Page
Back To The Frame Home Page
More Radial Magnet Holder Assembly Details

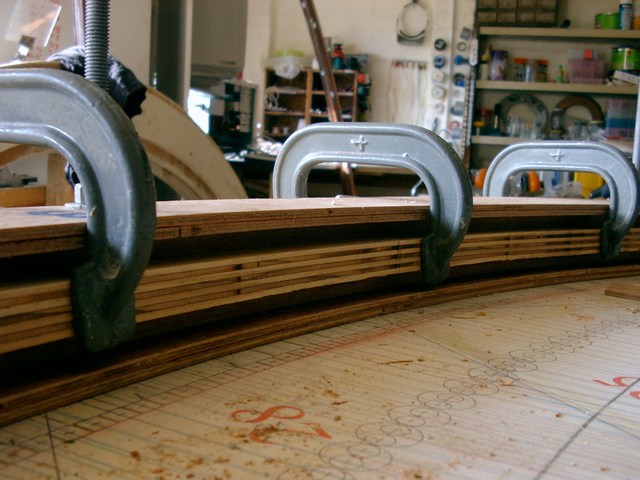

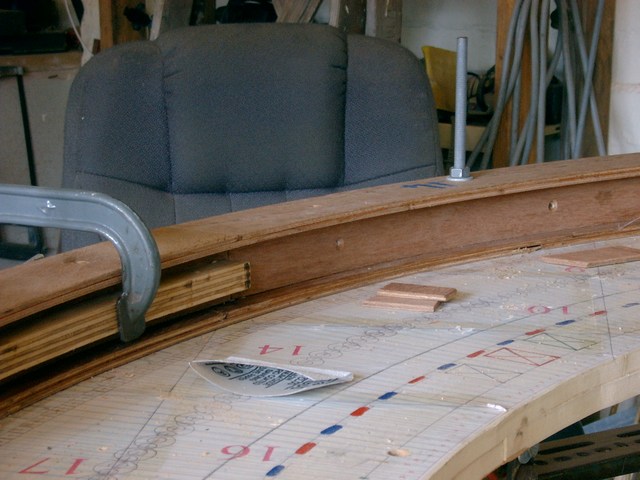

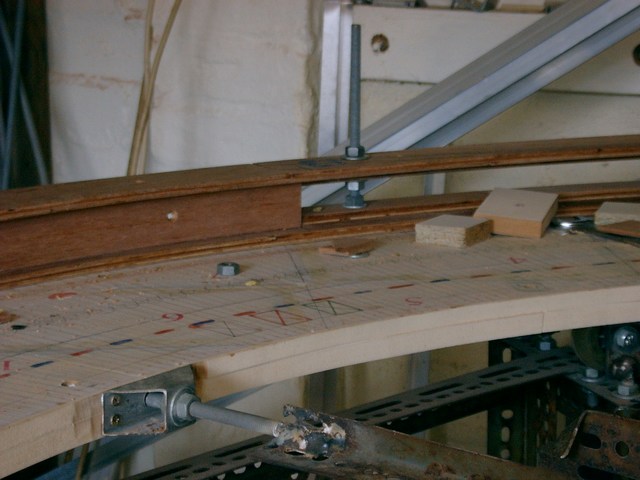

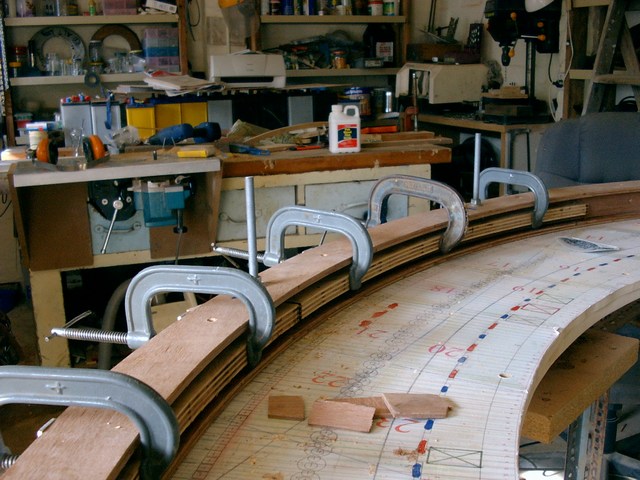

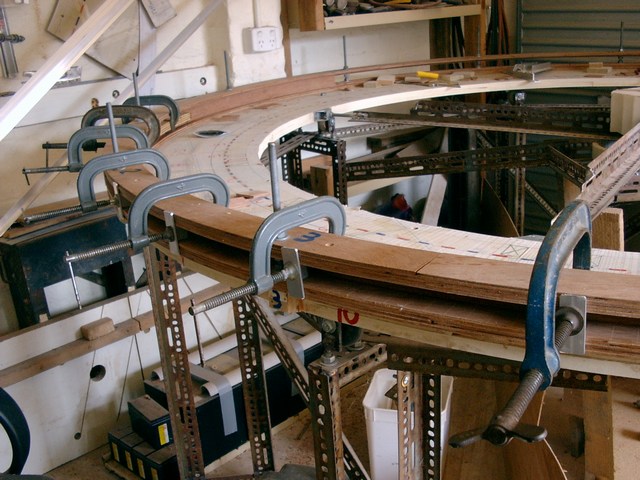

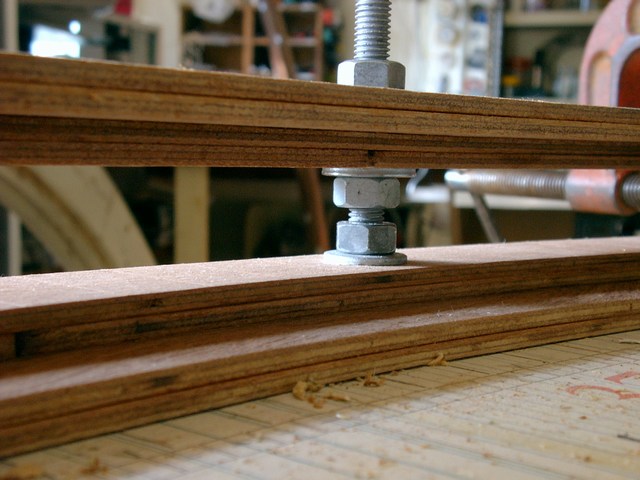

Pieces of plywood are glued and clamped into place against the rebate. Seven  layers are used here. Each layer is completed and the next layer staggered. Layers are held in place with heavy plywood cut into curved sections as shown under the clamps.
More Radial Magnet Holder Assembly Details
