Machine Frame or Stator
Radial Magnet Holder Steel Band

Back To The Home Page
Machine Construction Home Page
Back To The Frame Home Page
More Radial Magnet Holder Assembly Details

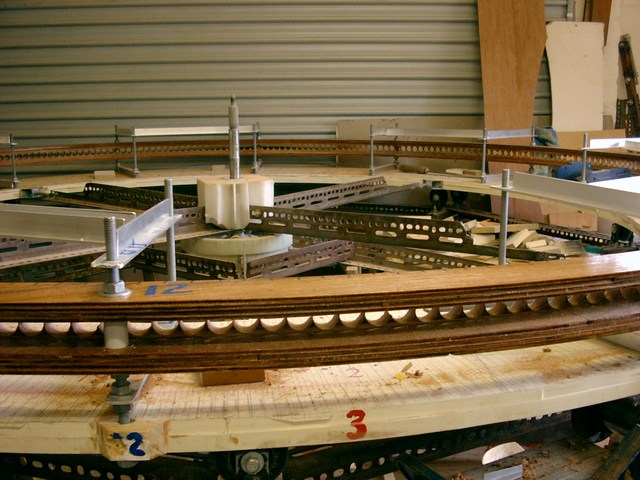

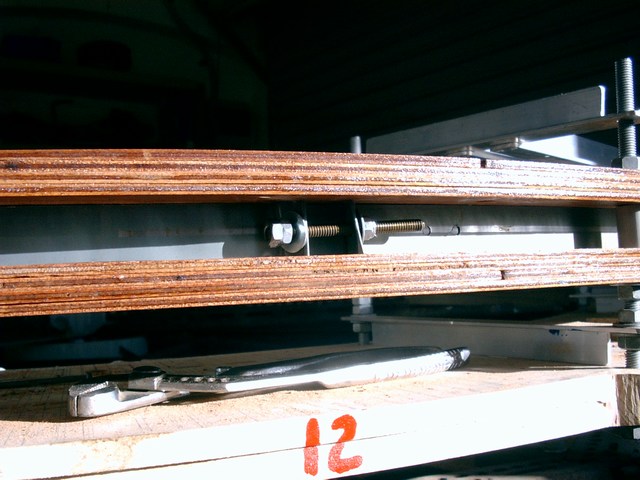

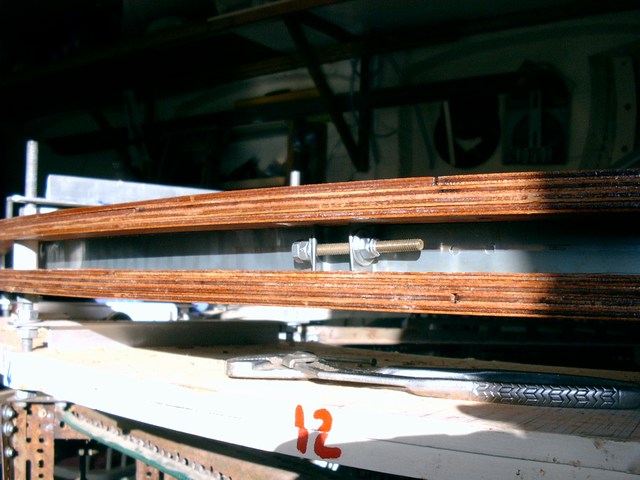

These clamps or bands are steel taken from behind the magnets in a Smartdrive rotor.
They hold the magnets in place and improve the strength of the magnetic fields. They also add some strength to resist the outward forces from the repelling interaction with the rotor magnets. The design would need some curved plywood blocks bolted in against the steel for increased  strength.
