Machine Rotor Construction
Table Magnet Position Template
Table Magnet Position Template

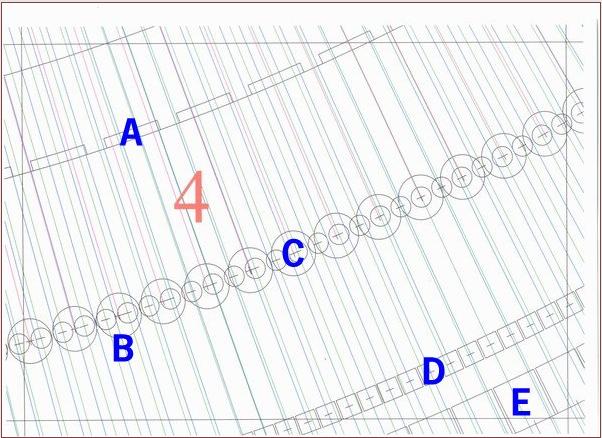

A grid has been set out on the tabletop to match a grid on a computer generated drawing. A set of 83 numbered and coded A4 sheets with color coded magnet layout lines, and all magnets positions for ring and frames has been glued to the tabletop with PVA glue and sprayed with clear lacquer. An example, not to scale, is shown. Blue lettering added here for clarity.
A Drive magnets fitted to rotor (168)
B 22mm dia x 25mm long ferrite magnets fitted to frame. 302 top and 302 bottom.
C 10mm dia x 10mm long rare earth magnets fitted to rotor (620)
D 10mm dia x 10mm long rare earth magnets fitted to outer circumference of rotor.(680)
E 22mm ferrite x 25mm long magnets fitted to frame. (329)
B 22mm dia x 25mm long ferrite magnets fitted to frame. 302 top and 302 bottom.
C 10mm dia x 10mm long rare earth magnets fitted to rotor (620)
D 10mm dia x 10mm long rare earth magnets fitted to outer circumference of rotor.(680)
E 22mm ferrite x 25mm long magnets fitted to frame. (329)
22 x 25 Ferrite Grade C8 Gauss 1800 Aussie Magnets 2220
10 x 10 Rare Earth Grade N38 Gauss 5903 Aussie Magnets 3330
10 x 10 Rare Earth Grade N38 Gauss 5903 Aussie Magnets 3330
