Experimental Levitating  Rotor Machines
                   Construction Details
Back To Home Page
A Magnetic Levitating Torus Rotor
Within A Non Magnetic Metal Torus
More Photos
More photos of build progress Oct 2022
Lower section is all one piece

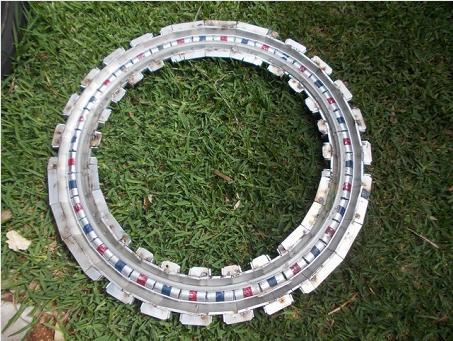

Lower section with rotor inside. No wheels yet.

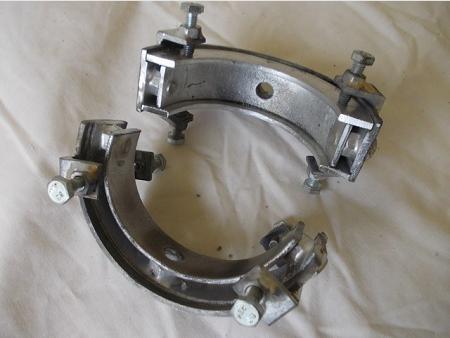

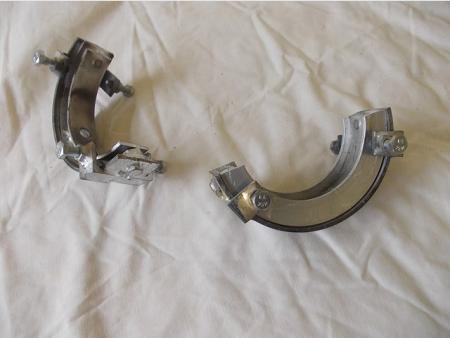

Tool to hold coil positions in place for welding.

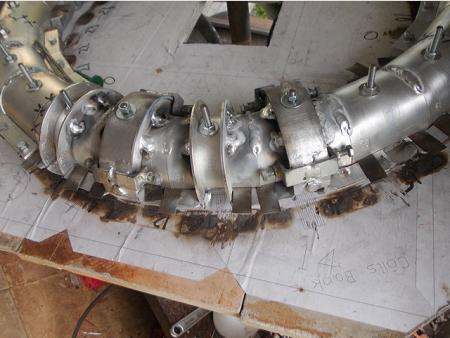

Upper section is assembled on top of lower section, and is made in 6 pieces so the rotor can be accessed later if required.
More Photos
