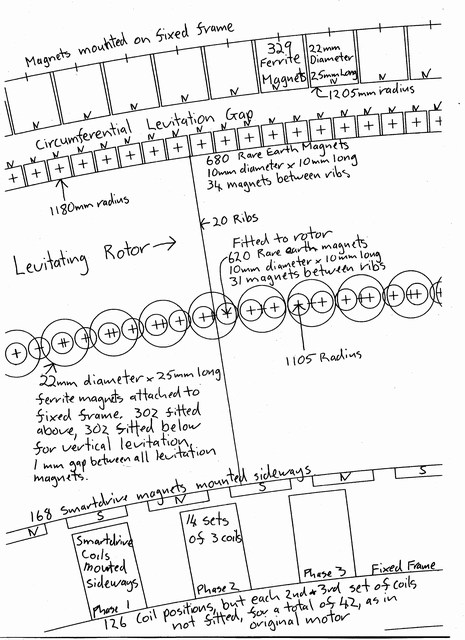

Plan View Of Proposed Layout
The width across the Rotor/ Levitating Ring is 160mm. The fixed frame is about 300mm wide, leaving a clear space about 1850mm in the center.

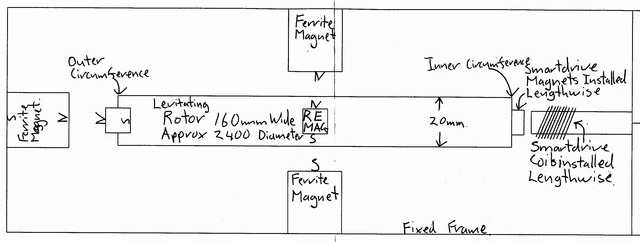

Elevation View Of Proposed Layout
The drive magnets and drive coils layout have changed Sep 2013
