Coils Mark2
Machine Construction Home Page
Back To Electronic Drive Home Page

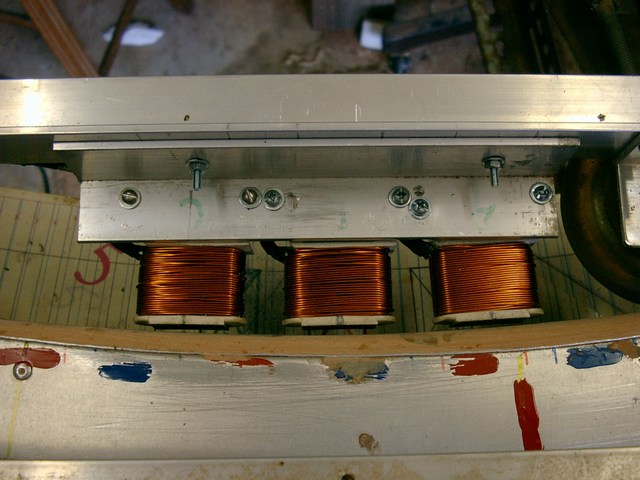

Top View

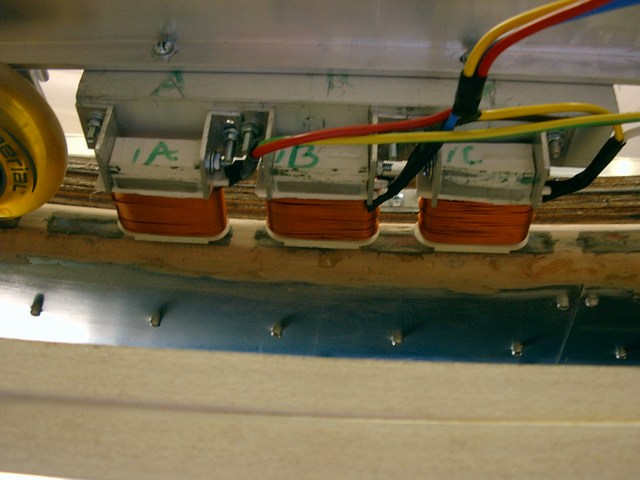

Bottom View
This is the first coil arrangement used to drive the rotor. There were 7 sets like this spaced around the frame. They were able to drive the rotor at about 1 rev per second. The small guide wheels were fixed in place, and the clearance/air gap between coils and magnets was about 3mm.
Coils Mark2
