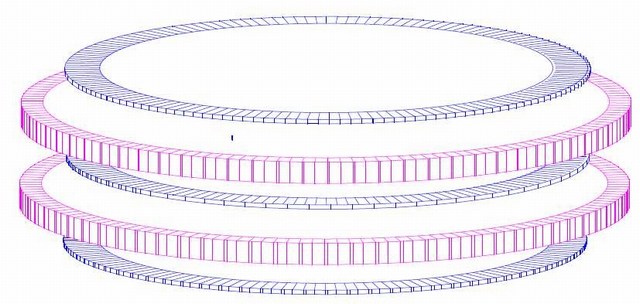

The top diagram shows the magnet holder frame sections. The 3 blue  rings contain vertical, or axial levitation ferrite magnets,and the 2 pink rings contain ferrite magnets for circumferential or radial or horizontal magnetic levitation or support. All of these parts are located within a ring shaped lattice or frame.

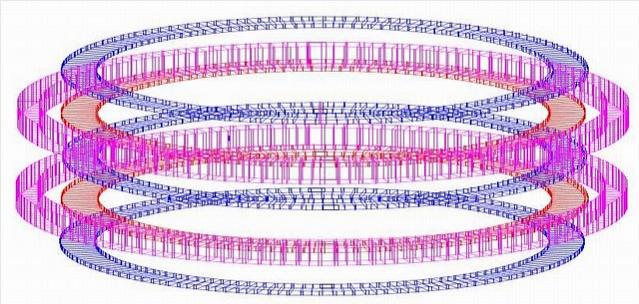

The 2 orange parts are the main levitating, rotating rings, or rotors. These contain rare earth magnets oriented to repel from the frame magnets in all directions. The outside diameter of the ring is about 2500mm. The frame is about 300mm wide by 300mm high.
