Experimental Levitating  Rotor Machines
                   Construction Photos
Back To Home Page
A Magnetic Levitating Torus Rotor
Within A Non Magnetic Metal Torus
More Photos

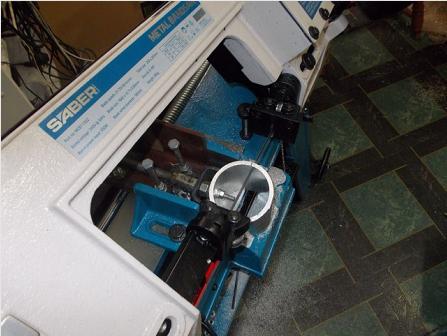

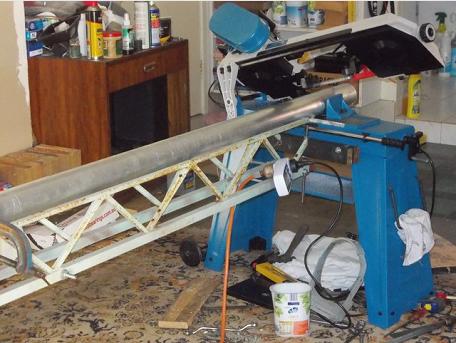

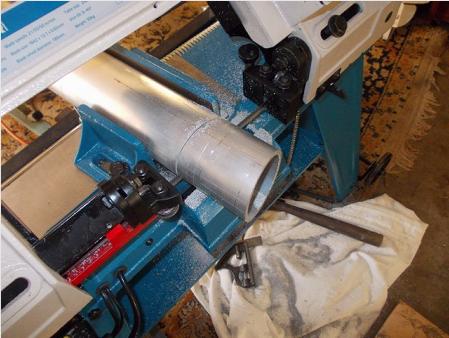

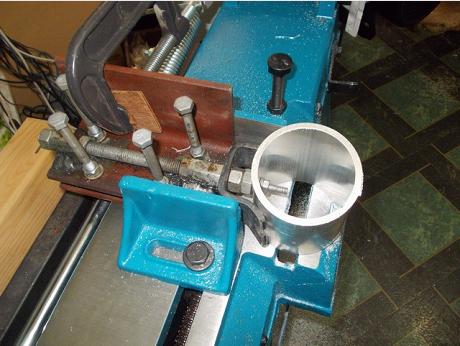

A metal cutting bandsaw makes very accurate parts.

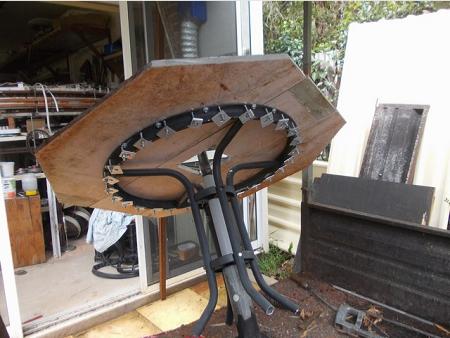

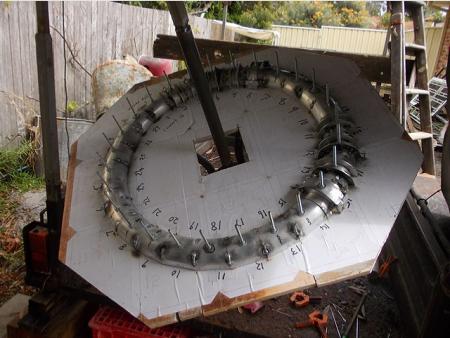

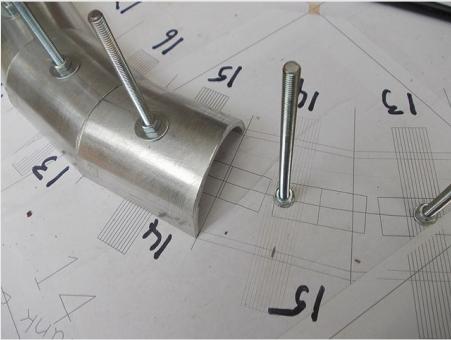

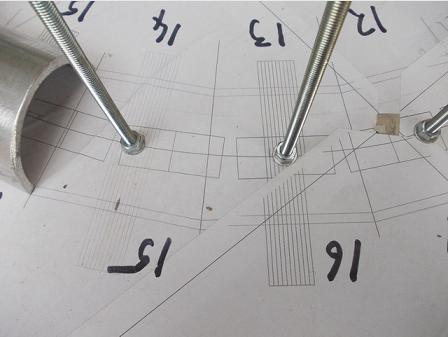

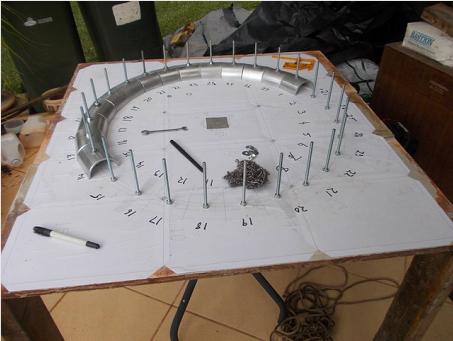

Assembling the lower section upside down. Template is glued to cement fibre sheet

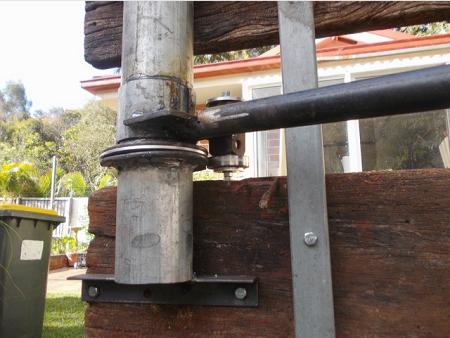

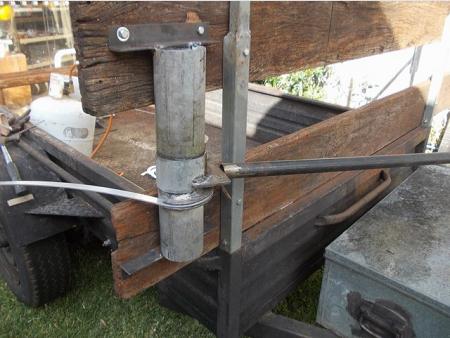

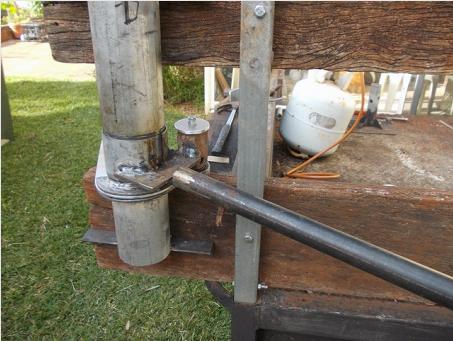

Gadget for bending 16mm x 3mm alum flat bar into semi circles for coil housings.
Old alum outdoor furniture makes a good adjustable welding table. Ground connection made underneath. 2 gadgets to hold coil semicircles in place to weld. First try at TIG welding. Not pretty.
