Lateral Acceleration Using A Separate Offset Field Within The Machines Main Offset Field

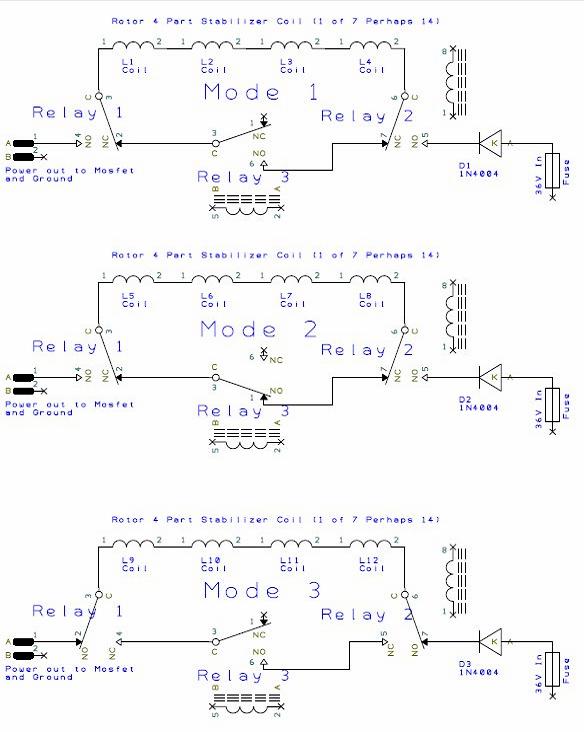

It is possible that the Stabilizer Coils I am fitting to the machine may also serve as the Lateral Acceleration components, with very little extra cost or effort. Two relays would be
required. One relay would be a DPDT, (Relays 1 & 2) and the other a SPST.(Relay 3)
Mode 1. All Relays are unpowered, and the Stabilizer Coil is Open circuit. No fields or electric currents should be created. Normal running condition. May induce opposing magnetic field in steel core beneficial to Rotor levitation.
Mode 2. Relays 1 & 2 unpowered. Relay 3 Powered. Stabilizer Coil is now shortcircuit.
This should generate a strong field for Lateral Acceleration.
Mode 3. Relays 1 & 2 are powered. Startup and shutdown conditions. Relay 3 unpowered.
Stabilizer Coil now able to be operated via MOSFET.
required. One relay would be a DPDT, (Relays 1 & 2) and the other a SPST.(Relay 3)
Mode 1. All Relays are unpowered, and the Stabilizer Coil is Open circuit. No fields or electric currents should be created. Normal running condition. May induce opposing magnetic field in steel core beneficial to Rotor levitation.
Mode 2. Relays 1 & 2 unpowered. Relay 3 Powered. Stabilizer Coil is now shortcircuit.
This should generate a strong field for Lateral Acceleration.
Mode 3. Relays 1 & 2 are powered. Startup and shutdown conditions. Relay 3 unpowered.
Stabilizer Coil now able to be operated via MOSFET.
